Product Name

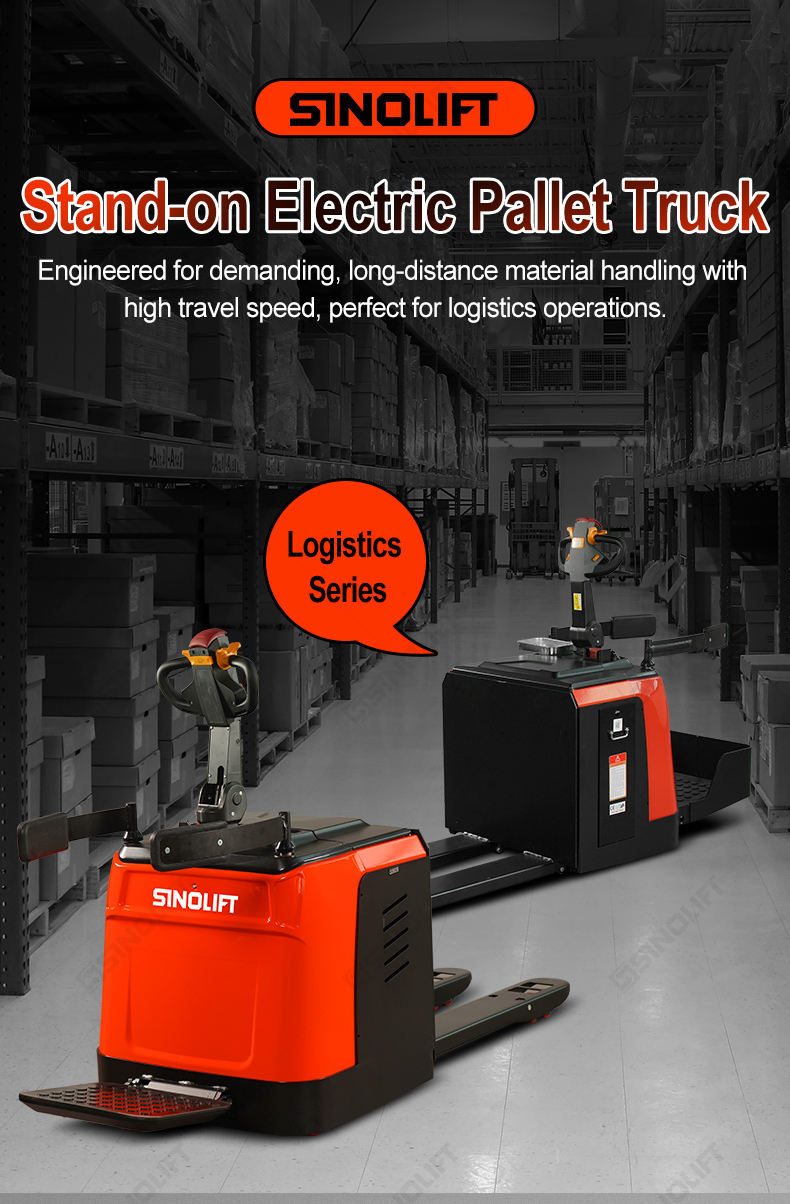

CBD20P CBD25P CBD30P Stand-on Electric Pallet Truck with Lithium-Ion Battery
Engineered for demanding logistics operations, the CBD Series Stand-On Electric Pallet Truck delivers exceptional efficiency in warehouses, docks, and distribution centers. Its compact design with a tight turning radius ensures superior maneuverability in confined spaces. The robust LiFePO4 battery system provides extended runtime for continuous full-shift operation. Built with reinforced steel and intelligent controls, it guarantees reliable performance under heavy-duty use.
Key Features:
Comprehensive Overview: CBD Series Stand-On Electric Pallet Trucks
1. Superior Maneuverability
The series boasts an exceptionally tight turning radius, enabling effortless navigation through narrow warehouse aisles and confined spaces, maximizing storage space utilization.
2. Robust Performance
Engineered with reinforced steel construction and powerful AC drive motors, these trucks deliver reliable heavy-duty performance for demanding long-distance transport and high-intensity workflows.

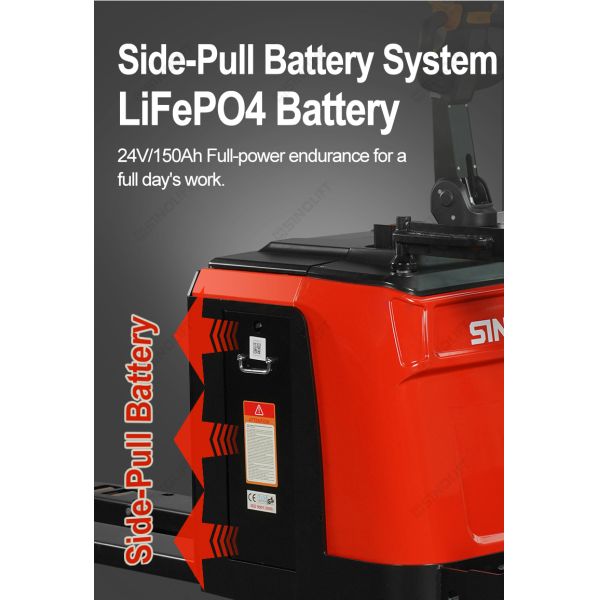

3. Advanced Power System
Equipped with long-lasting LiFePO4 batteries, the trucks support extended full-shift operation, providing consistent power output and significantly reduced charging downtime.
4. Enhanced Productivity
The space-efficient stand-on design allows operators to ride during longer transfers, dramatically increasing productivity compared to traditional walk-behind models while reducing physical fatigue.

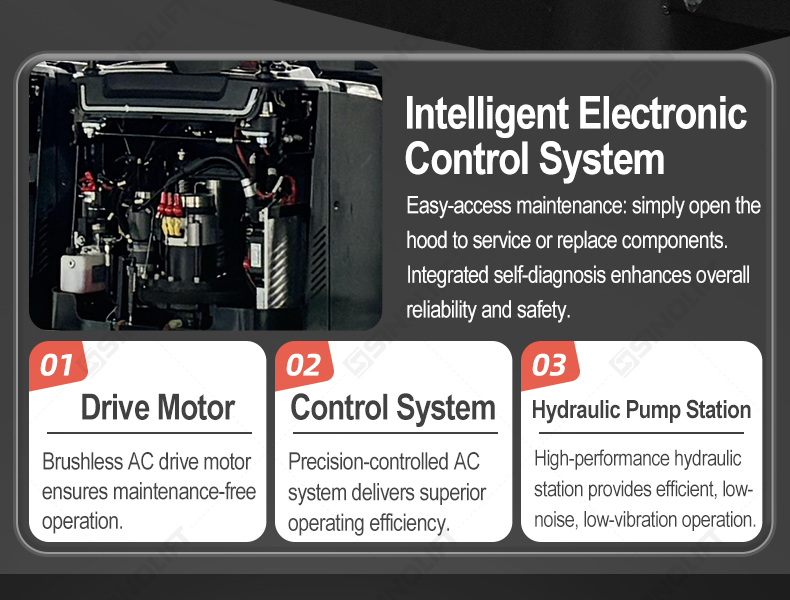

5. Intelligent Control System

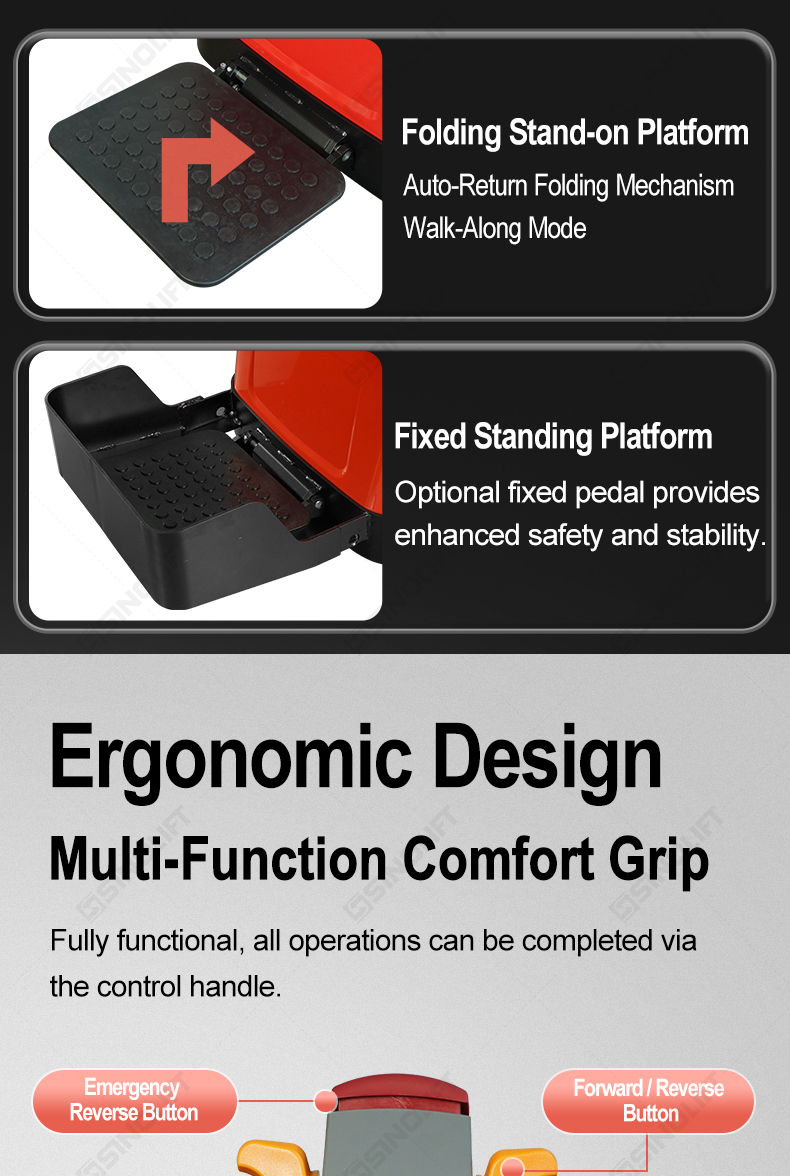

An ergonomic multi-function handle integrates all operational controls, including precision slow-speed mode and emergency functions, ensuring effortless and secure handling.
6. Comprehensive Safety Features
Safety is prioritized through electromagnetic regenerative braking, emergency reverse functionality, and a stable standing platform, providing operators with confidence in busy environments.
Application Versatility
The CBD series demonstrates exceptional adaptability across diverse material handling scenarios, proving equally effective in warehouse storage, port operations, retail distribution, and manufacturing facilities, offering a versatile solution for various industrial requirements.
Product Specifications
| Model | | CDD20P/25P/30P | CDD20PX(Logistics Series) |
| Rated Load Capacity | kg | 2000/2500/3000 | 2000 |
| Load Center Distance | mm | 600 | 600 |
| Front Overhang | mm | 960 | 960 |
| Wheelbase | mm | 1500 | 1500 |
| Weight Including Battery | kg | 625 | 625 |
| Wheel Load (Full Load) - Drive Wheel Side / Load Wheel | kg | 1095/1633 | 1095/1633 |
| Wheel Load (No Load) - Drive Wheel Side / Load Wheel | kg | 497/124 | 497/124 |
| Tire Type | | Polyurethane |
| Front Wheel Specification | mm | Φ250x80 | Φ250x80 |
| Rear Wheel Specification | mm | Φ80x80 | Φ80x80 |
| Stabilizer Wheel Size | mm | Φ115x55 | Φ115x55 |
| Number of Wheels Front/Rear (X = Drive Wheel) | | 1X+2/4 | 1X+2/4 |
| Front Wheel Track | mm | 625 | 625 |
| Rear Wheel Track | mm | 385/510 | 385/510 |
| Lifting Height | mm | 120 | 120 |
| Handle Height During Operation (Min./Max.) | mm | 1030/1430 | 1030/1430 |
| Minimum Fork Height | mm | 85 | 80-85 |
| Overall Length | mm | 1930 | 2420 |
| Chassis Length | mm | 780 | 1270 |
| Overall Width | mm | 820 | 820 |

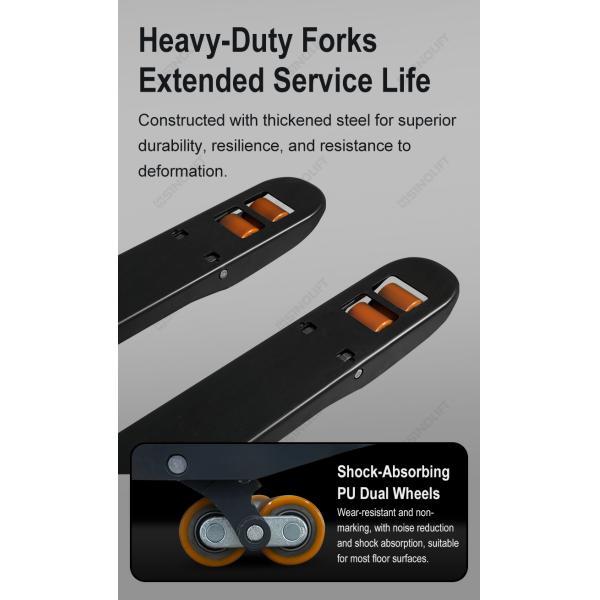

| Fork Dimensions | mm | 50/176/1150 | 50/176/1150 |
| Fork Spread Width | mm | 560/685 | 560/685 |
| Minimum Ground Clearance | mm | 30 | 30 |
| Working Aisle Width (1000×1200 Pallet) | mm | 2551 | 2961 |
| Working Aisle Width (800×1200 Pallet) | mm | 2416 | 2826 |
| Turning Radius | mm | 1750 | 2160 |
| Travel Speed (Full Load/No Load) | km/h | 5.5/5.8 | 8/12 |
| Lifting Speed (Full Load/No Load) | m/s | 0.04/0.05 | 0.04/0.05 |
| Lowering Speed (Full Load/No Load) | m/s | 0.06/0.05 | 0.06/0.05 |
| Maximum Gradeability (Full Load/No Load) | % | 8/20 | 8/20 |
| Service Brake | | Electromagnetic Regenerative Braking |
| Drive Motor Power | kW | 2.5 (AC) | 2.5 |
| Lift Motor Power | kW | 2.2 | 2.2 |
| Battery Voltage/Capacity | V/Ah | 24/210(270) | 24/210(270) |
| | | 24/(150,175,200,230) | 24/(150,200,230) |
| Battery Weight | kg | 200/260 | 200/260 |
| Drive Control Method | | AC Speed Control |
|
|
