SINOLIFT SDYG Capacity 500kg Self-Loader Stacker

Product Categories

Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.

Contact Now

Name: SINOLIFT SDYG Capacity 500kg SelfLoader Stacker
Brand: SINOLIFT
Price: 14601 USD

Brand Name : SINOLIFT

Model Number : SDYG

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : $1460 1unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 units

Delivery Time : Negotiation

Packaging Details : Standard export packaging

Application : Industrial

Test Report : Provided

CE certificate : Provided

Packaging : Standard export packing

Power : Cooperated With Fortune 500,Competitive OEM factory,Company Industry Experience(17 Year),Full Customization

Minimum order quantity : 1 UNIT

Method of payment : L/C,D/P,D/A,T/T,Credit card,PayPal

The delivery period : Negotiation

Warranty : 1 Year

Contact Now

SINOLIFT SDYG Self-Loader

Model		SDYG-Z 0509	SDYG-Z 0510	SDYG-Z 0511	SDYG-Z 0513
Rated Capacity	Q(Kg)	50o	50o	500	500
Load Center	C(mm)	400	400	400	400
Ways to lift		Electric	Electric	Electric	Electric
Mode of operation		Walkie	Walkie	Walkie	Walkie
material		Polyurethane	Polyurethane	Polyurethane	Polyurethane
wheelbase	y(mm)	860	860	860	860
Front track	b11(mm)	380	380	380	380
Rear track	b10(mm)	670	670	670	670
Number of steering/load-bearing wheels/balance wheels		37293	37293	37293	37293
Load bearing wheel size	mm	Ф70x60	Ф70x60	Ф70x60	Ф70x60
Steering wheel size	mm	Ф100x50	Ф100x50	Ф100x50	Ф100x50
Balance wheel size	mm	Ф40x26	Ф40x26	Ф40x26	Ф40x26
Auxiliary balance wheel size	mm	Ф30×26	Ф30×26	Ф30×26	Ф30×26
Minimum height of forks off the ground	mm	90	90	90	90
Maximum height after fork lifting	h3(mm)	900	1000	1100	1300
Fork outside width	mm	535	535	535	535
Fork inside width	mm	225	225	225	225
Fork working length	l(mm)	1150	1150	1150	1150
Single-sided fork size	e/s(mm)	155/60	155/60	155/60	155/60
Vehicle length	L1(mm)	1565	1565	1600	1600
Vehicle width	b1(mm)	790	790	790	790
Vehicle height (when forks are lowered)	h1(mm)	1195	1250	1400	1600
The height of the vehicle after the mast is lifted	h4(mm)	2100	2300	2500	2900
Length to the vertical face of the fork	l2(mm)	1150	1150	1150	1150
Minimum turning radius	Wa(mm)	1120	1120	1100	1120
Maximum lifting speed (full/unloaded)	mm/s	80/110	80/110	80/110	80/110
Maximum descent speed (full/unloaded)	mm/s	80/80	80/80	80/80	80/80
Lifting motor	V/Kw	12/0.8	12/0.8	12/O.8	12/0.8
Battery capacity	V/Ah	12/33	12/33	12/33	12/33
Battery weight	Kg	10	10	10	10
Weight	Kg	175	186	197	219

SINOLIFT SDYG Capacity 500kg Self-Loader Stacker

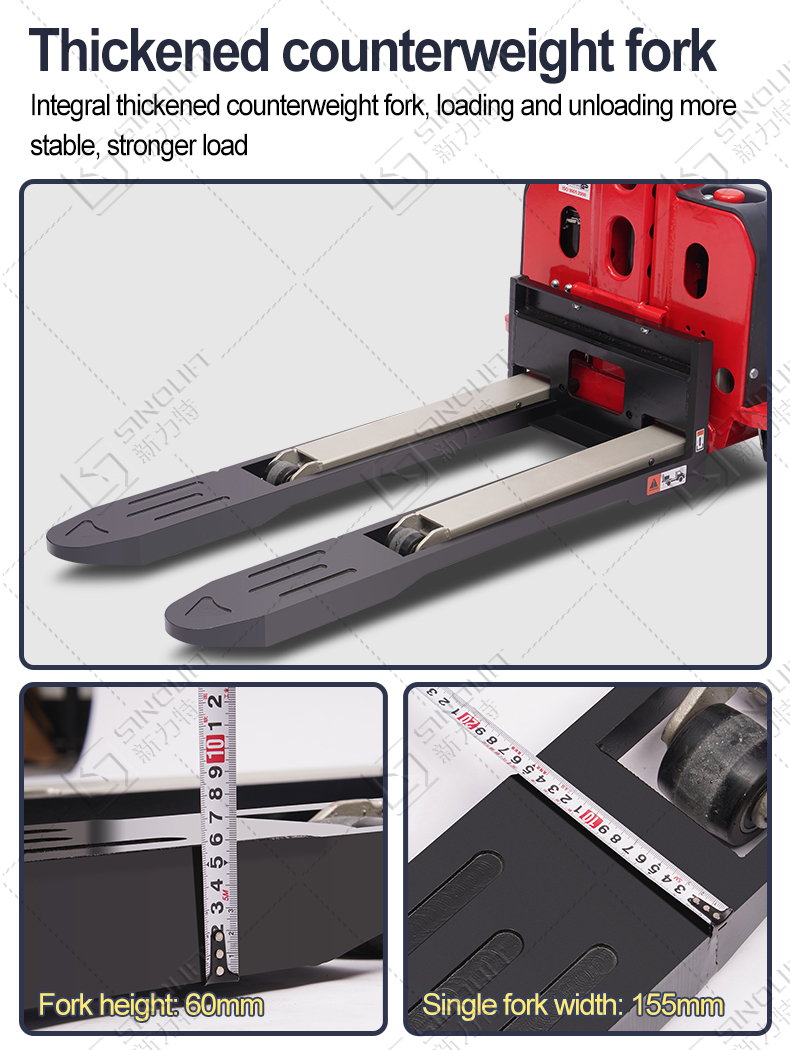

SINOLIFT SDYG Capacity 500kg Self-Loader Stacker Images
